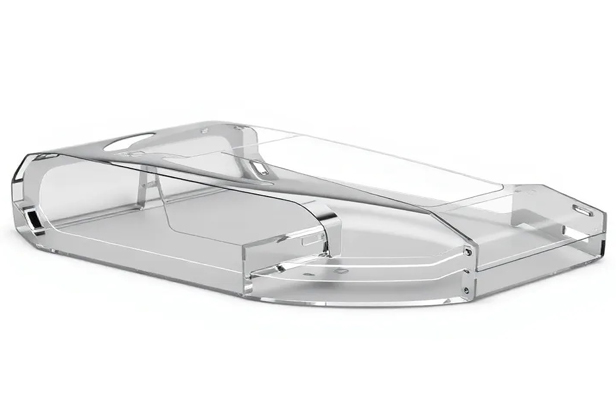

Acrylic (PMMA) CNC Machining: Material Properties, Design Guide & Applications

Acrylic, formally known as polymethyl methacrylate (PMMA), is a transparent thermoplastic that combines glass-like optical clarity with practical machinability. With a light transmission of up to 92% and a density of just 1.17–1.20 g/cm³ — roughly half that of glass — acrylic produces parts that are both visually clear and significantly lighter than their glass equivalents.

For engineers and designers working with CNC machining, acrylic is a reliable choice when a design requires transparency, dimensional precision and a stable surface finish. It can be milled, turned, drilled and engraved to tight tolerances using standard CNC equipment with appropriate tooling and cutting parameters.

• Best for: Clear parts, light guides, windows, guards, outdoor panels
• Avoid when: High shock loads, heat above 80°C, solvent-heavy environments
• Typical tolerance: ±0.10 mm standard, ±0.05 mm precision
• Available Finishes: As-machined, polished, flame-polished edges, bead blasted, annealed

What is Acrylic (PMMA)?

PMMA is an amorphous thermoplastic polymer. In its natural state it is fully transparent and colourless, though it is also widely available in opaque, translucent and tinted forms. It softens progressively above approximately 100 °C and has a melt temperature around 160 °C — lower than most metals and many engineering plastics — which directly influences how it should be machined.

Compared to glass, acrylic is around 17× more impact resistant, 50% lighter and does not shatter into sharp fragments under load. Compared to polycarbonate, it offers better surface hardness, higher optical clarity and superior weathering resistance, though lower impact toughness and a slightly lower service temperature ceiling.

When to Choose Acrylic for CNC-Machined Parts

Acrylic is a practical material choice when one or more of the following apply:

• The part requires optical transparency or controlled light transmission.
• The design will be exposed to outdoor UV without protective coatings.
• A lightweight glass alternative is needed for enclosures, guards or windows.
• Surface finish quality and appearance are critical requirements.
• The part involves moderately complex geometry that benefits from CNC precision.
• Chemical resistance to dilute acids, alkalis and aqueous solutions is required.

Where very high impact resistance, elevated service temperatures above 80 °C or prolonged contact with aggressive solvents are the primary drivers, polycarbonate or other engineering plastics may be a better fit.

Acrylic Grades and Forms Available for CNC Machining

Cast Acrylic vs Extruded Acrylic

Both cast and extruded acrylic are compatible with CNC machining, but they differ in internal structure, optical quality and machining behavior.

Cast acrylic is generally preferred for parts where optical performance, polishing quality and resistance to stress cracking matter most. Its lower residual stress means it tolerates drilling, tapping and edge machining with less risk of spontaneous cracking.

Extruded acrylic offers better sheet thickness consistency and is well suited to cost-sensitive applications where optical perfection is not the primary requirement. Its higher internal stress demands closer attention to clamping, feed rates and coolant strategy during machining.

Available Stock Forms and Thickness Ranges

Acrylic for CNC machining is available in the following standard stock forms:

Acrylic (PMMA) Material Properties

Physical and Mechanical Properties

Acrylic vs Comparable CNC Transparent Materials

Engineers often evaluate acrylic alongside polycarbonate (PC) and glass. The table below compares key parameters relevant to CNC machining decisions.

Design Guidelines for CNC-Machined Acrylic Parts

Wall Thickness and Corner Radii

Acrylic is brittle relative to other engineering plastics — its elongation at break of 2–10% leaves limited tolerance for stress concentrations in machined features. Design choices that distribute stress and maintain adequate section thickness have a direct impact on part success.

Wall thickness:

Corner radii:

Sharp internal corners act as stress risers in acrylic and are the most common initiation point for cracking under load or thermal cycling. Internal radii should be a minimum of 0.5 mm; 1.0–2.0 mm is preferred where geometry allows. External edges should be chamfered or radiused to reduce chipping during and after machining.

Holes, Threads and Inserts

Holes:

• Minimum recommended hole diameter: 1.0 mm for shallow holes; 2.0 mm preferred for through-holes
• Depth-to-diameter ratio: keep below 4:1 for reliable chip evacuation without pausing the cycle
• Exit face protection: use a sacrificial backer board for thin sheets to prevent exit-side chipping

Threads:
Acrylic does not hold direct-cut threads well under repeated assembly, high torque or vibration loading. The material's low elongation means thread roots are vulnerable to cracking if overtightened.

Tolerances and Dimensional Stability Considerations

CNC-machined acrylic can hold tight dimensional tolerances when the setup, tooling and thermal management are well controlled. The values below reflect practical expectations under standard shop conditions and are verified through QA & QC dimensional inspection before dispatch.

Key dimensional stability factors for acrylic:

• The coefficient of thermal expansion (CTE) of acrylic is 70–80 × 10⁻⁶ /K — approximately 3–4× higher than aluminum. For parts used across wide temperature ranges or assembled into metal substructures, this differential expansion should be accounted for in clearance and fit design.
• Water absorption of 0.2–0.3% over 24 hours can cause minor dimensional change in high-humidity environments. For precision fits, parts should be measured and assembled under controlled conditions.
• For parts with tight tolerances on multiple features, allow a thermal settling period after roughing before the finish pass. This prevents accumulated machining heat from causing springback that affects final dimensions.

Common Failure Modes and How to Design Against Them

Acrylic's brittleness, heat sensitivity and notch sensitivity mean that part failures during or after machining are almost always traceable to specific design decisions. The table below identifies the most common failure modes and the design choices that prevent them.

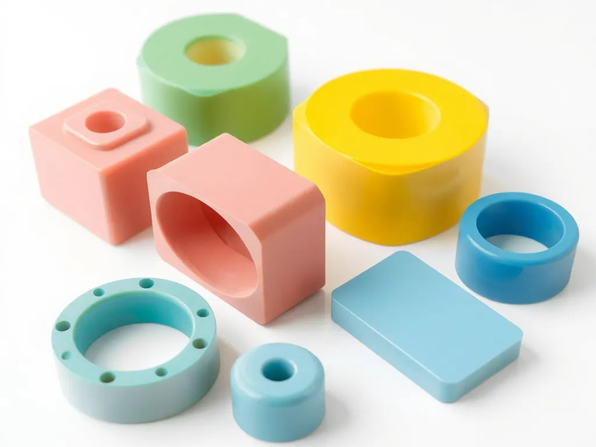

Surface Quality and Finishing Options for Acrylic

As-Machined Surface Expectations

CNC-machined acrylic, produced with sharp plastic-specific tooling and optimized cutting parameters, delivers a smooth, semi-clear finish directly off the machine. Visible tool paths may remain on flat faces and pocket floors, but edges and profiles are typically clean and burr-free. Ra values of approximately 0.8–3.2 µm are common for standard as-machined acrylic surfaces, depending on tool geometry, step-over and pass strategy.

As-machined surfaces are fully functional for the majority of acrylic applications — enclosures, guards, brackets, manifold bodies and structural panels. Where appearance or optical performance is not a primary requirement, no secondary finishing is needed.

Polishing and Optical-Grade Surfaces

For applications where the machined surface must transmit or reflect light with minimal scatter — optical windows, light guides, display panels, lenses and sight glasses — post-machining polishing removes tool marks progressively through a sequence of abrasive grades.

Polishing adds time and cost — typically increasing part cost by 50–200% depending on the surface area and the level of finish specified. Specifying polishing only on functional optical faces, while leaving non-visible internal faces as-machined, is a practical way to manage this.

Flame polishing is fast and effective for profile edges and perimeter faces but is not suitable for flat precision surfaces where dimensional tolerance must be maintained, as it introduces minor thermal distortion. It should not be applied to extruded acrylic with high internal stress, as it can trigger stress cracking.

Compatible Finishes and Marking Methods

Acrylic is compatible with a range of secondary operations that form part of Clarwe's surface finishing capabilities:

Note on painting and adhesives: Standard spray paints and many solvent-based adhesives attack acrylic surfaces, causing crazing. Only use adhesives and coatings specified for PMMA compatibility. Water-based acrylic paints or UV-cure optically clear adhesives (OCAs) are generally safe.

Chemical, Thermal and Environmental Performance

Acrylic has good resistance to a range of chemicals relevant to industrial and laboratory use but is notably sensitive to aromatic and chlorinated solvents, and to many common cleaning products.

Service Temperature Window and Thermal Expansion

Acrylic is a practical material for ambient and moderately warm service conditions. Its heat deflection temperature of 73–109 °C (grade dependent at 0.45 MPa load) provides a useful margin over most indoor and light-industrial environments.

Practical temperature limits:

For applications where service temperatures regularly exceed 80 °C, or where thermal cycling over a wide range is expected, polycarbonate (PC, continuous service ~110–125 °C) is a more appropriate material. The higher CTE of acrylic (70–80 × 10⁻⁶ /K) also needs to be factored into press-fit, bonded and bolted joint designs to avoid stress buildup during thermal cycling.

Outdoor, UV and Weathering Behavior

One of acrylic's most valued material characteristics is its resistance to UV degradation. Unlike polycarbonate, which yellows and hazes without UV-stabilizing coatings, natural acrylic retains its optical clarity under prolonged outdoor UV exposure with as little as 3% degradation over a 10-year period.

This behavior makes CNC-machined acrylic a practical choice for:

• Outdoor display and signage panels
• Architectural glazing details and building facade elements
• Marine instrument windows and cockpit screens
• Solar and photovoltaic system cover glazing
• Agricultural and greenhouse glazing components

Surface coatings are not required for UV stability in standard grades of cast acrylic, though anti-scratch or hydrophobic coatings can be applied for specific environmental demands.

Optical and Lighting Components

Acrylic's combination of ~92% visible light transmission, a refractive index of ~1.49 and good surface polishability makes it a standard material for CNC-machined optical and lighting components. Typical parts include:

• Light guide rods and bar light guides for backlit displays and instrument panels
• Diffuser plates for uniform LED illumination
• Lens blanks and custom lenses for scientific instruments, inspection systems and machine vision
• Protective windows for laser enclosures and UV light sources

Enclosures, Guards and Panels

Transparent machine guards, operator protective screens and inspection windows are among the most common CNC-machined acrylic applications in industrial and manufacturing settings. The ability to see clearly through the material while providing a physical barrier makes acrylic a practical choice where safety visibility is required. These applications are particularly relevant to the industries Clarwe supports, including industrial machinery, automation and process equipment.

Common parts:

• CNC and robotic cell safety guards and viewing windows
• Electrical enclosure covers and front panels with cutouts for switches and displays
• Control panel fascias with engraved labeling
• Dust and splash guards for instrumentation

Fluid Handling, Laboratory and Instrumentation Parts

Acrylic's chemical resistance to aqueous solutions, acids and alkalis, combined with optical transparency, makes it a standard material in laboratory and process instrumentation. Parts in this category benefit from CNC machining's ability to produce precise internal channels, ports and sealing faces to close tolerances.

Common parts:

• Microfluidic and millifluidic manifold blocks with internal channel networks
• Flow cells and cuvettes for spectroscopic or colorimetric measurement
• Fluid reservoirs and sight glasses for process monitoring
• Pump housings and filter bodies for laboratory-scale fluid systems

For these parts, surface finish quality on channel walls and port faces is critical and is confirmed through Clarwe's QA & QC dimensional and visual inspection protocols before delivery.

Display, Signage and Architectural Elements

Acrylic's clarity, weathering stability and ability to be engraved, backlit and edge-lit make it a standard material for display, retail and architectural applications. CNC machining enables precise cutouts, routed profiles, engraved text and shaped forms that would be difficult to produce consistently in sheet processing.

Common parts:

• Illuminated sign faces and backlit display panels
• Architectural glazing inserts, stair balustrades and privacy screens
• Exhibition and museum display cases

Marine, Aerospace and Automotive Components

Acrylic's outdoor durability, UV stability and light weight translate into a range of transport and outdoor-exposure applications where the CNC machining process enables complex, high-quality geometry in production quantities.

Common parts:

• Boat windshields, porthole windows and instrument panel covers
• Aerospace instrument lenses, cockpit displays and lighting bezels
• Automotive interior trim, dashboard covers and lighting housings

Material Selection — When Acrylic Is (and Is Not) Suitable

Use the table below to confirm whether acrylic is the right material for your CNC-machined part, or whether a different material will better serve your design requirements.
