Anodizing is an electrochemical process that puts an oxide layer on a metal part to improve its properties. During this process voltage is applied and aluminum ions migrate from the surface – this is often called “voltage subtract aluminum ions”. As positive aluminum ions leave the surface oxygen ions from the electrolyte combine with aluminum atoms and a durable aluminium oxide layer forms on the surface. This layer on the surface is what gives anodized aluminum its improved properties – corrosion resistance, surface hardness and insulation. The anodized layer gives:

A hard, corrosion resistant coating

Better bonding for paints and adhesives

Protection from environmental elements like moisture and chemicals

Aesthetics

Scratch resistance

Overall anodized aluminum is more durable, corrosion resistant and looks good. It’s versatile and is used in many industries where function meets beauty.

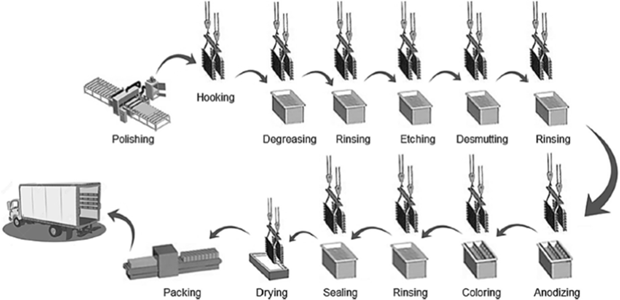

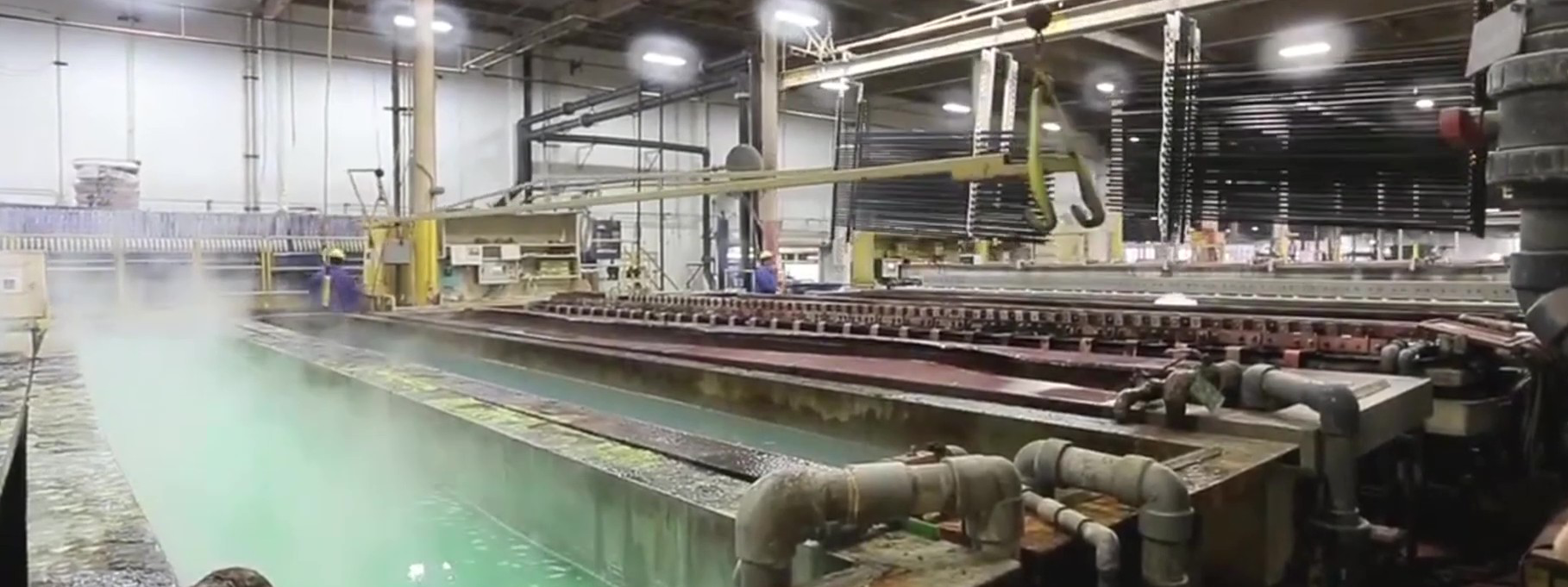

The anodizing process has three main steps: cleaning and etching, anodizing in an electrolyte bath, and sealing and coloring. In the anodizing tank, metal plates are used as electrodes—one as the anode and one as the cathode. The cathode is the negative electrode, attracting positive ions from the electrolyte solution. During the process, positive aluminum ions leave the aluminum surface, which creates porosity and allows the formation of a durable aluminum oxide layer.

Each step has its own importance.

Cleaning and Etching

Cleaning uses a mild solution to remove machining residues and grease. Sodium hydroxide and nitric acid are common agents to remove surface coatings, so the aluminum surface is free from impurities, necessary for etching. Phosphoric acid can also be used as a pretreatment to clean and prepare the aluminum surface, especially before adhesive bonding or organic coating.

Etching removes surface defects and the natural oxide layer from the aluminum, so it’s ready for anodizing. Temperature and concentration of the sodium hydroxide solution affect the etching process.

Mechanical methods like polishing or bead blasting can also be used to prepare the aluminum surface before anodizing. Chemical polishing is another surface preparation technique to achieve a smooth, glossy finish before anodizing.

Anodizing in Acid Electrolyte Bath

Anodizing involves submerging aluminum in an acid electrolyte bath and applying an electrical current. Sulfuric acid anodize is the most common method for making durable, corrosion resistant aluminum surfaces. The aluminum becomes porous and grows a layer of aluminum oxide as positive and negative ions leave the surface during the process.

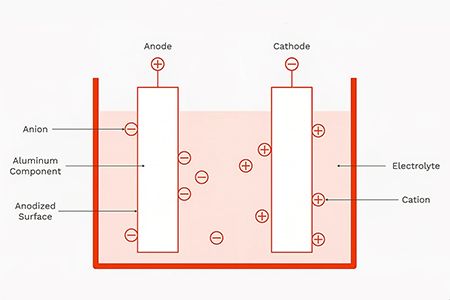

The aluminum parts are connected to an electrical circuit and act as the anode. This step is critical for forming the anodic oxide structure that enhances the aluminum atoms properties with a metal electrode.

Sealing and Coloring

Sealing the anodized aluminum closes the pores and protects the surface. Hot DI sealing produces a porous aluminum oxide layer and hydrated aluminum oxide preventing corrosion and improving performance during the sealing process.

Mid temperature sealing uses metal salts in solution like nickel, magnesium or cobalt salts to chemically react with the surface, fill pores and improve sealing quality. This method is good for colored components and reduces surface mineral deposits and defects like sealing smut. The porous surface of anodized aluminum allows for good dye absorption and sealing.

Cold sealing chemistries like nickel-fluoride based formulations operate at room temperature to create a protective fluoro-aluminate layer on the aluminum oxide surface. Nickel fluoride formulations are commonly used in these cold sealing chemistries to improve surface adhesion and meet military and automotive industry standards.

Coloring anodized aluminum involves filling the porous structure with colorants. Pigments are injected into open pores and then sealed to preserve the color of the parts. Metallic salts are used in electrolytic coloring to get bronze or black finish by reacting with the porous surface of the anodized layer, filling pores with colored compounds.

The anodizing process can be broken down into different methods based on the acid bath used and the oxide layer formed. These methods include chromic acid anodizing, sulfuric acid anodizing and hard anodizing.

Chromate conversion coating is sometimes used as a prep or secondary treatment to anodizing to add corrosion protection and electrical conductivity to aluminum surfaces.

Each has its own benefits and is suited for different applications.

Chromic Acid Anodizing

Chromic acid anodizing is the oldest method and has been around for many years in many applications. This process involves submerging aluminum in a chromic acid bath to produce Type I coatings, provides great protection for joints and structures, ideal for high corrosion requirements. Also chromic acid anodize has unique benefits in certain environments.

Used for applications that require thin coatings, lightweight and high corrosion resistance, chromic acid anodizing meets military specifications in MIL-PRF-8625F for Type I and Type IB anodizing.

Sulfuric Acid Anodizing

Sulfuric acid anodizing is the most prevalent method, producing thicker oxide layers and a wide range of color options. Increasing coating thickness improves:

wear resistance

corrosion resistance

lubricant retention

insulation

sulfuric anodizing.

Black is one of the most popular colors for anodizing, as colorants seep into the hollow pores created during the process.

Hard Anodizing

Hard anodizing creates a thicker oxide layer, offering exceptional protection in harsh conditions. Known as Type III anodizing, it derives its name from the military standard Mil-A-8625 Type III, which specifies oxide thickness.

This technique is used in applications requiring high wear and abrasion resistance and corrosion resistance.

Conversion coating is a surface treatment used as an alternative to anodizing to improve corrosion resistance and paint adhesion on metal surfaces. Unlike anodizing which uses an electrochemical process to build up a protective oxide layer, conversion coating uses a chemical reaction to form a thin film directly on the metal surface. This film, often made from chromate or phosphate compounds, acts as a barrier to enhance corrosion protection and is a great base for subsequent coatings or paints.

Conversion coating is especially good for aluminum and steel where it can be applied quickly and cost effectively. It’s used in industries where anodizing is not practical due to cost, complexity or the need for a specific type of corrosion resistance. For example conversion coatings are chosen for parts that need good corrosion resistance but don’t need the thicker more durable oxide layer produced by anodizing.

In summary conversion coating is a versatile and efficient way to improve corrosion resistance and surface properties of metal surfaces making it a popular choice for many industrial and commercial applications.

Anodized aluminum stands out not only for its corrosion protection but also for its unique electrical and thermal properties that are a result of the anodizing process. When aluminum goes through sulfuric acid anodizing or chromic acid anodizing, a porous aluminum oxide layer forms on the surface. This anodic oxide structure is electrically insulating meaning it prevents the flow of electricity through the anodized coating. So anodized aluminum parts are often used in applications where electrical insulation is required, such as in electronic housings, connectors and other components that must not short circuit.

Despite the insulation properties of the oxide layer, the electrical conductivity of the underlying aluminum remains the same. This allows manufacturers to design parts that have a corrosion resistant, non-conductive surface and conductive aluminum where needed.

Thermally the oxide layer also reduces the thermal conductivity of anodized aluminum compared to bare aluminum. The thickness of the anodized coating (sulfuric acid anodizing, chromic acid anodizing, hard anodizing) affects both electrical and thermal insulation. Thicker oxide layers provide more insulation which is good for thermal management or heat transfer protection.

Understanding this is key when selecting anodized aluminum for aerospace, automotive and electronics applications where corrosion protection and specific electrical or thermal performance is required. The ability to control the thickness and properties of the anodized layer makes anodized aluminum a very versatile material for advanced engineering.

Anodized aluminum parts are more resistant to wear, scratches and deterioration so it’s perfect for many applications. The process reduces maintenance cost and extends life of parts especially when using higher grade alloy and aluminum alloys.

Please note that anodizing can affect the dimension of threaded holes sometimes you need to re-tap or use oversize taps to maintain proper fit for fasteners.

Anodized aluminum is a sustainable surface treatment that reduces environmental footprint by increasing product durability through aluminium anodizing.

Corrosion Resistance

The anodized layer acts as a protective coating against harsh environment, prevents oxidation. Anodic oxide finish anodized finishes are more corrosion resistant than powder coating.

Anodizing process increases corrosion resistance of medical equipment, maintains safety and reliability and prevents further corrosion protection.

Durability and Wear Resistance

Anodizing increases the surface hardness of aluminum making it more scratch and wear resistant. Anodized aluminum can be harder than stainless steel up to Rockwell 70C.

Anodizing is more wear resistant than powder coating ideal for high use applications like anodized parts, shafts and sliding parts.

Aesthetic Appeal

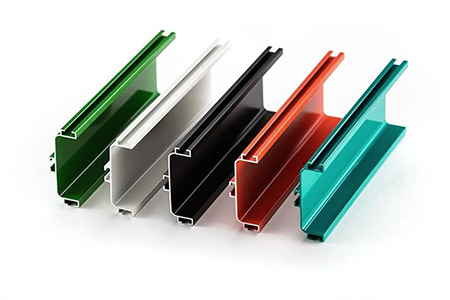

Anodizing allows colors and finishes to be applied in the anodizing tank for both performance and looks. Metallic tones, vibrant colors and matte finishes can be achieved.

The anodized layer preserves visual quality ideal for decorative applications with an anodized layer and anodized coating.

Anodising is a widely used process with applications across many industries, functional and aesthetic. Anodized aluminium is used in consumer goods and industrial equipment because of its versatility and durability.

Electroless nickel plating and nickel plating are sometimes used as post process to further enhance the surface properties of anodized aluminium in industrial applications.

Architectural Components

Anodized aluminium is used in architecture for:

Curtain walls

Window frames

Roofing

Trim It’s durable for facades, windows and doors, UV and moisture resistant.

The smooth surface of anodized aluminium can be coloured in many ways, making it suitable for modern architecture.

Consumer Electronics

Anodizing makes consumer electronics look and last better, a vibrant and scratch resistant surface. Anodized aluminum is a pretty finish that consumers like.

Medical Equipment

Anodized aluminum is biocompatible so it’s safe for medical use. It’s preferred in medical equipment because it’s easy to clean and sanitize.

Common applications for anodized titanium are jaw, hip and knee implants, because it’s biocompatible.

Anodized aluminum is more durable and less prone to chipping than painted finishes. Unlike powder coating the protective layer formed during anodizing bonds with the metal for longer lasting protection. This is different from plating or painting.

Compared to electroplating anodized aluminum has better wear resistance so it’s a better choice for demanding applications. It’s a combination of aesthetics, durability and corrosion resistance so it’s the preferred choice over other finishes.

Anodizing is environmentally friendly with:

No emissions

Fully recyclable aluminum

Minimal by-products compared to other finishing methods, just small amounts of VOCs

Non-toxic electrolytes, no heavy metals or hazardous chemicals

The process produces inert aluminum oxide, harmless to health and the environment, making it more sustainable. So anodized aluminum is the green choice for many applications.

Anodized surfaces are easier to maintain and clean than untreated aluminum, less long term maintenance cost. Routine cleaning can be done with mild soapy water and soft cloth. For tough deposits mild abrasive cleaners can be used.

To care for anodized surfaces:

Don’t use abrasive cleaners or scrubbing pads, they will damage the anodized layer.

For minor scratches apply touch up paint matching the anodized color for repairs.

Inspect regularly to find surface scratches or corrosion before they get worse.

New anodizing techniques like plasma electrolytic oxidation and laser assisted anodizing are taking anodizing to new heights. These techniques improve uniformity, strength and functionality of anodized coatings and are suitable for products with very tight tolerances.

Plasma Electrolytic Oxidation

Plasma electrolytic oxidation applies higher voltages and sparks and creates crystalline/ceramic coatings including oxide coating. This technique improves wear resistance and thermal stability and is ideal for industrial applications like heavy equipment and extreme environments.

Plasma electrolytic oxidation increases durability and protection in harsh conditions and extends the life of treated components. This new approach means aluminum and other metals can withstand industrial environments and stay structurally sound.

Laser-Assisted Anodizing

Laser-assisted anodizing creates cool surface patterns that are both functional and aesthetically pleasing. This method marks or personalizes products while keeping the anodizing benefits.

By using lasers, manufacturers can get super detailed and precise designs on anodized aluminum parts. This method keeps the anodizing benefits and offers a way to customize and differentiate products.

Anodizing is not just for aluminum; it can also be done on materials like titanium, zinc, tantalum, niobium, and other non-ferrous metals. Anodizing titanium produces different colors without dyes, depending on the oxide layer thickness and anodizing voltage. This is useful in applications like costume jewelry and implants where biocompatibility and aesthetics matter.

Niobium can also be anodized, by adjusting the anodizing voltage and oxide layer thickness. Anodized niobium is used in jewelry and commemorative coins because of its colors and durability.

And magnesium anodizing meets specs like AMS 2466 and ASTM B893 so it’s good for industrial applications to enhance corrosion resistance.

In short anodized aluminium stands out for its durability, corrosion resistance and looks. Anodising turns aluminium into a material that is not only functional but also beautiful. From architectural components to medical equipment the applications of anodised aluminium are endless.

The new techniques in anodising like plasma electrolytic oxidation and laser assisted anodising are taking anodising to new heights. Anodising beyond aluminium opens up new possibilities in other metals in other industries. Anodised aluminium means investing in a material that is long lasting, sustainable and has a wide range of applications.

What is anodized aluminum?

Anodized aluminum is aluminum that has been electrochemically treated to form a tough, corrosion resistant oxide layer.

What are the benefits of anodized aluminum?

Anodized aluminum has many benefits including increased durability, superior corrosion resistance and improved looks. It’s great for architecture and consumer electronics.

How is the anodizing process performed?

The anodizing process involves cleaning and etching the aluminum, immersing it in an acid electrolyte bath while applying an electric current, then sealing and coloring the anodized layer. This gives a durable and corrosion resistant finish on the aluminum surface.

Can materials other than aluminum be anodized?

Yes, titanium, zinc, tantalum and niobium can also be anodized and get benefits of improved corrosion resistance and looks.

How do you maintain anodized aluminum?

To maintain anodized aluminum you need to clean it regularly with mild soapy water and soft cloths and check for scratches or corrosion. This proactive approach will ensure the longevity and looks of the material.
